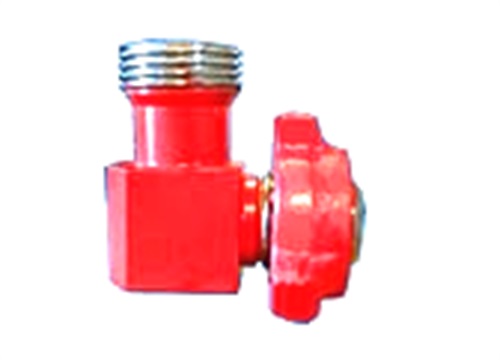

Integral joint
高压接头是固井和压裂设备中高压流体控制元件。广泛地被使用在酸性作业环境（不包括含CO2、H2S酸性气体的作业环境）中高压排出管线、输入管线、临时液流管线、试井管线以及其它高压输送管线上。
Product Features
- The technical parameters and performance of high-pressure joints comply with API 6A standards. The product specification level is PS3, and the performance level is PR1, making it interchangeable with similar products from SPM.
- High-pressure integral joints are used for connecting various fracturing and cementing equipment on-site.
- The integral piping joint series includes long radius 90-degree elbows, right-angle elbows, T-shaped tees, Y-shaped tees, three-way manifolds, four-way manifolds, and reducers. Specifications are 2" and 3", with a cold working pressure of 42 MPa to 140 MPa (6000 psi to 20000 psi).
Product Parameters
1. Rated Working Pressure: 25 MPa to 140 MPa (3626 psi to 20000 psi)
2. Nominal Diameter: 2″ to 4″
3. Temperature Rating: -29°C to 82°C (P-grade)
4. Applicable Conditions: Standard, low temperature, and H2S environments
5. Manufacturing Standards: API 6A and NACE MR0175
Operating parameters
Optional Configuration
|
产品名称 |
扣合尺寸 |
冷工作压力 |
端部连接形式 |
扣型 |
|
|
长半径活动弯头 |
1½" |
42Mpa(6000psi) |
螺纹(Tr100×12) |
10型 |
|
|
fig602 |
M×M |
||||
|
说明：①活动弯头各连接形式可以按用户需求变化设计 |
|||||
|
产品名称 |
扣合尺寸 |
冷工作压力 |
端部连接形式 |
扣型 |
型号 |
|
长半径活动弯头 |
1½" |
42Mpa(6000psi) |
螺纹(Tr100×12) |
10型 |
|
|
fig602 |
M×M |
||||
|
说明：①活动弯头各连接形式可以按用户需求变化设计 |
|||||
