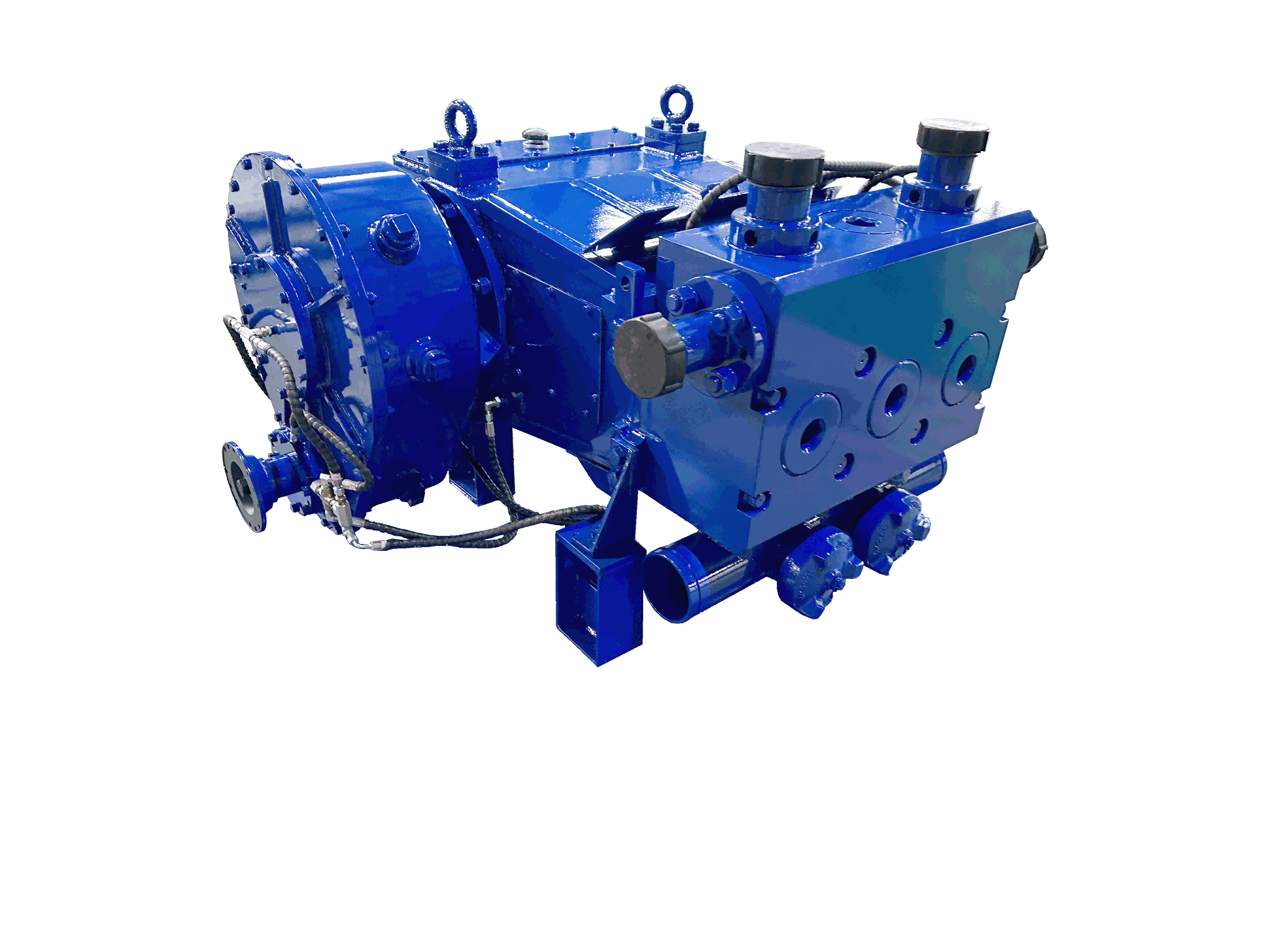

Plunger Pump KTZ600S
KTZ600S泵是一种往复式、容积式、单作用、卧式三缸柱塞泵，该泵的最大输入功率为600hp。该泵广泛地用于间歇式油井作业，如酸化、固井、压裂、注水等工况。
Product Features
Main structural characteristics:
1. Composed of three parts: the power end, the fluid end and the gearbox.
2. Features a unique external gearbox design, with the gearbox able to be positioned on either the left or right side, and offers 16 different installation positions. This design facilitates vehicle layout and maintenance.
3. With small size and light weight. With its short pump structure design, it is suitable for twin-pump vehicles (skid-mounted) and has become a standard product for cementing trucks and injection equipment.
4. Provides complete interchangeability with similar plunger pump assembly products.
5. Offers two different pump head bodies to accommodate four different sizes of plungers (3", 3.5", 4" and 4.5"), allowing for various pressures and displacements for customer selection.
Product Parameters
|
|
|
||||||||||||||||||||
Operating parameters
Performance Parameters:
(Note: The parameters in the table are calculated based on 100% volumetric efficiency and 90% mechanical efficiency.)
|
Plunger Diameter (inches) （mm） |
Pump Strokes (rpm) |
||||||||||
|
50 |
120 |
200 |
300 |
450 |
|||||||
|
Displacement GPM (L/min) |
Pressure Psi (MPa) |
Displacement GPM (L/min) |
Pressure Psi (MPa) |
Displacement GPM (L/min) |
Pressure Psi (MPa) |
Displacement GPM (L/min) |
Pressure Psi (MPa) |
Displacement GPM (L/min) |
Pressure Psi (MPa) |
||
|
3" (76.2) |
28 (104) |
14141 (97.5) |
66 (250) |
14098 (97.2) |
110 (417) |
8456 (58.3) |
165 (625) |
5642 (38.9) |
248 (938) |
3756 (25.9) |
|
|
3.5" (88.9) |
37 (142) |
10399 (71.7) |
90 (341) |
10341 (71.3) |
150 (568) |
6208 (42.8) |
225 (851) |
4148 (28.6) |
337 (1277) |
2756 (19) |
|
|
4" (101.6) |
49 (185) |
7962 (54.9) |
118 (445) |
7919 (54.6) |
196 (741) |
4757 (32.8) |
294 (1112) |
3176 (21.9) |
441 (1668) |
2118 (14.6) |
|
|
4.5" (114.3) |
62 (235) |
6295 (43.4) |
149 (563) |
6266 (43.2) |
248 (938) |
3756 (25.9) |
372 (1407) |
2509 (17.3) |
558 (2111) |
1668 (11.5) |
|
|
Input Power |
188kW |
447kW |
447kW |
447kW |
447kW |
||||||
Optional Configuration
The pump adopts a special short-structure design, making it suitable for double-engine double-pump truck-mounted cementing units, such as truck-mounted cementing unit GJC(Q)100-30, GJC(Q)70-30, 700-type truck-mounted acid-fracturing unit, skid-mounted high-pressure injection unit 45-21, etc.
