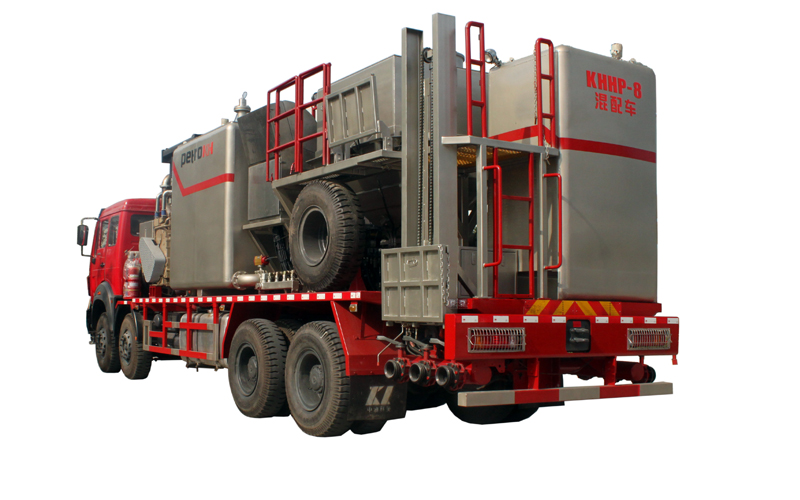

Hydration Unit
Product Features
HCP480 (8 square) type continuous on-line Hydration Unit performance characteristics:
1. High-Energy Jet Constant Pressure Mixer: Effectively solves the issue of ‘water-packed powder’.
2. Online Viscosity Measuring Device: Effectively measures the viscosity of fracturing fluid, ensuring the quality of the mixing process.
3. First-In-First-Out Tank System: Includes high-speed stirring shear to further increase viscosity.
4. Manual and Automatic Control System: Features a control system that can switch between manual and automatic modes.
Product Parameters
|
Model |
8 square |
10 square |
|
Form |
Truck-mounted/skid-mounted/trailer-mounted |
|
|
Chassis |
Beiben 8×4/BENZ |
|
|
Engine |
Cummins/DDC/CAT |
|
|
Clear water centrifugal pump |
6×5×14 |
6×5×14 |
|
Discharge centrifugal pump |
8×6×14 |
10×10×11 |
|
Maximum discharge flow rate |
8 square metres |
10 square metres |
|
Number of pumps |
3-4 ways |
4 ways |
|
Mixing tank |
16 square, 16 square is divided into 11 square mixing tanks and 5 square secondary mixing tanks. |
|
|
Dry powder tank |
5 ways |
|
|
Control form |
Manual/Automatic |
|
|
Monitoring |
Real-time monitoring of viscosity, PH and other data, storage and recording of operation data. |
|
