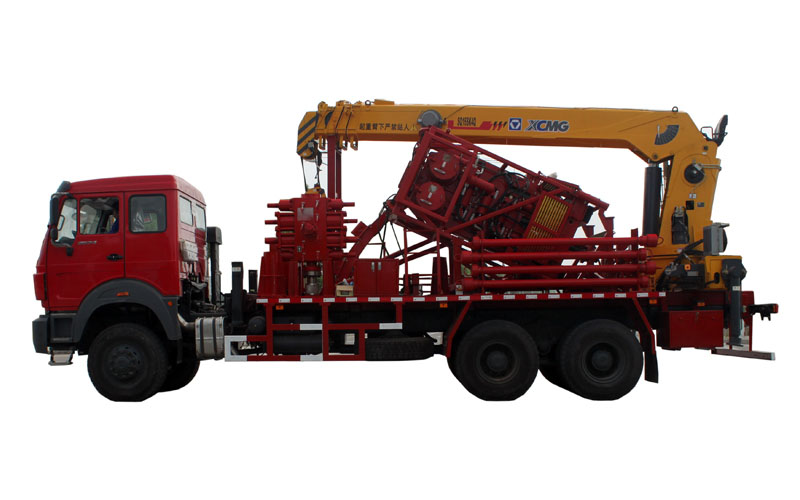

Coil Tubing Truck
Product Features
Features of LG360/LG450 Continuous Tubing Workover Equipment
1. Double truck loading, strong mobility, adapting to the harsh road conditions in Chinese oilfields;
2. Frame-type beam of the main vehicle, greatly improving the loading capacity;
3. Large-Capacity Drum，Capable of carrying 2-inch and larger diameter oil pipes. The integral design ensures simple and safe drum replacement.
4. Backup System for the Sprayer，designed with a backup system for the sprayer, meeting the customer's requirement for using two sprayers.
Product Parameters
|
Model
|
LGC450 |
LGC360 |
|
Chassis
|
Main vehicle BENZ/MAN,Auxiliary vehicle Beiben/BENZ
|
|
|
Pick-up mode |
Chassis pick-up |
|
|
Drum capacity |
2”-6000m （1.75”-7500m） |
2”-6000m （1.75”-7500m） |
|
Injection head model |
100K |
80K |
|
Continuous lifting force of injection head |
4500kg |
36000kg |
|
Continuous downward pushing force of injection head |
22500kg |
18000kg |
|
Maximum working pressure |
69MPa/103.5Mpa |
|
|
Truck-mounted crane |
18T |
|
